LOPA

Relevance

Major technological accidents and catastrophes in the second half of the 20th century worldwide, including in Russia, forced a reconsideration of approaches to safety management. Production safety became the main priority. This can be seen in the number of various regulatory documents already adopted and being adopted. This trend is very clearly visible in the graph in Fig. 1. It was during this time that various methodologies and approaches in risk analysis and management developed, which are legally enshrined. In Russia during this period, an entire system of standards for risk analysis and management emerged.

The update of the Russian regulatory framework for ensuring the safety of hazardous production facilities has not been left aside, which is also developing and harmonizing with international best practices in terms of general approaches and methodology, and is reflected in federal laws, documents of Rostekhnadzor, EMERCOM, and GOST R.

For example, in accordance with Federal Law-116 [1], when registering hazardous production facilities (HPF) of classes I and II, the development of an industrial safety declaration requires conducting a comprehensive assessment of accident risks and related threats to human life and health, property, and the environment. The industrial safety declaration of a hazardous production facility in operation must be regularly updated:

• after ten years of operation;
• when technological processes at the hazardous production facility change;
• when industrial safety requirements change;
• upon instruction from the federal executive authority.

It should be noted that this is not the only mention in Federal Law-116 [1] of the need for risk assessment; the entire concept of the industrial safety management system is based on this, including accompanying regulatory legal acts. The main risk assessment methods (31 methods) and recommendations for method selection are described in GOST R [4], which also provides references to other international standards that describe in more detail the application of specific risk assessment methods. Each of these methods is applicable in various situations; in our case, we will consider various aspects of applying LOPA risk analysis.

Principle

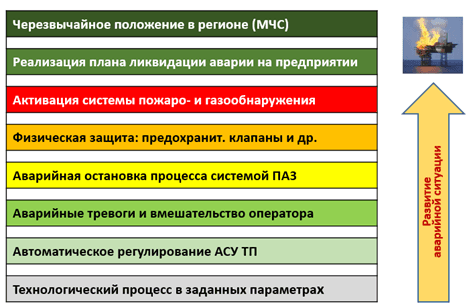

LOPA stands for Layer of Protection Analysis, which means analysis of independent levels of protection. LOPA is a simplified semi-quantitative risk assessment method that evaluates a hazardous scenario to determine its consequences and initiating events leading to the risk of this scenario occurring. That is, before establishing the need for a safety function, all independent protection layers using other technologies should be considered. The independent protection levels of a technological facility can be visually represented in Fig. 2. Here it is evident that inadequacy or failure of one protection level leads to activation of a higher protective level. The principle of LOPA analysis consists of risk assessment considering the action of all independent protection levels of the facility. This is the main difference between LOPA and other risk assessment methods.

All independent protection levels are evaluated for a specific scenario to determine the reduced probability of risk occurrence. For each scenario, LOPA separately analyzes the adequacy of existing barriers to reduce risk, i.e., acceptable risk criteria are achieved. In addition to analyzing the reliability of independent protection levels, LOPA determines the target Safety Integrity Level (SIL) for automated safety instrumented systems in accordance with the GOST R IEC 61508/61511 series of standards.

Explanations for the LOPA table in Fig. 3

Numerical values of IPL failure probability are typically selected from practice at the specific enterprise where the analysis is conducted. For example, safety system failure occurs once in 10 years, or 0.1 times per year.

If the initial event (IE) realization has several development scenarios, then for each of them its own value of reduced risk through independent protection levels (AR) is calculated:

where AR1, AR2…ARn are the values of reduced risk through independent protection levels for each risk realization scenario.

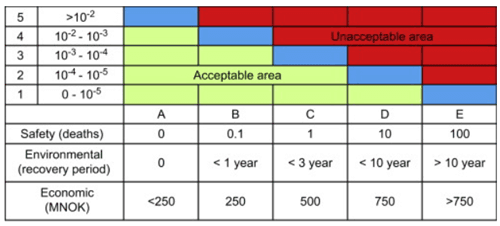

The essence of the calculation is to determine residual risk (AR) after applying condition modifiers and protective independent layers. Then, using the ALARP principle, acceptable risk for this initial event is determined.

SIL

Basic terms and concepts

As mentioned above in this article, using the LOPA risk assessment methodology, the target value of the safety integrity level of the safety instrumented system can be determined. But to understand how and why this is done, let's first consider the fundamental terms of the safety instrumented system that will participate in calculating the target SIL. First, let's present the structure of the enterprise technological process control system.

• F&G – fire and gas detection system;
• SIS – safety instrumented system;
• DCS – distributed control system.

As seen from the diagram, three independent systems are connected into a single integrated system, and the safety instrumented system plays a key role in it.

Basic definitions of safety instrumented system:

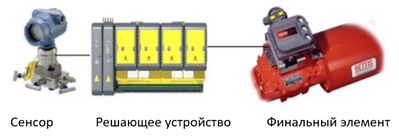

The safety instrumented system consists of at least one safety instrumented function and can reach several thousand or more in large safety instrumented systems.

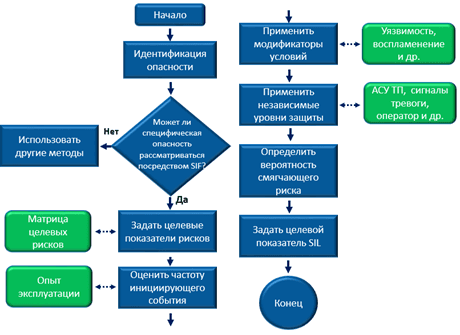

SIL levels determine the magnitude of acceptable risk for the safety instrumented system. This indicator is the probability that the safety instrumented system will correctly perform its functions in case of an accident in the technological process. Determining the PFD value to determine the necessary SIL class will be considered in the next chapter. Determining the target SIL level using the LOPA methodology.

Let's return to Chapter 2 of this article, where we determined the numerical value of risk realization probability reduced through independent protection levels (Actual Risk or AR). To determine the target SIL value, it is necessary to perform 2 actions:

TR - Target risk;

AR - Probability of risk realization reduced through independent protection levels.

This is our target SIL level. For example, if we get a calculated PFD value = 0.5 х 10⁻², this corresponds to SIL2 level.

Performers

LOPA analysis team and necessary documentation

LOPA analysis is performed by a multidisciplinary group led by an experienced chairman with experience in organizing and conducting PHA analyses, for example, HAZOP and LOPA. The group, in addition to the chairman, should include specialists of the following qualifications:

1. Secretary;
2. Process engineer;
3. Operations engineer for specific facilities and equipment, having deep knowledge of procedures and possessing technological process safety information;
4. Mechanical engineer;
5. Instrumentation and control engineer;
6. Occupational safety, industrial safety and environmental protection engineer;
7. Other specialists, as necessary.

The following documents are necessary for conducting LOPA analysis:

• Working tables of process hazard analysis / HAZOP or source data on existing hazards;
• Cause-and-effect diagrams;
• Piping and instrumentation diagrams (P&ID);
• Technical specifications defining safety requirements.

The results of the performed LOPA analysis are documented in a protocol that includes: source data, description of performed calculations, calculation table, and recommendations.

Advantages

The LOPA method has several advantages that make it popular in the engineering community:

• first, it is a simplified tool for checking risk analysis in a hazardous scenario and developing appropriate safety measures to reduce it;
• second, based on the conducted analysis, it is quite simple to determine the target SIL level in safety instrumented systems without complex calculations or special software;
• third, LOPA can use source data for conducting risk assessments obtained by other methods, for example, HAZOP. LOPA analysis can also be conducted during a HAZOP session to clarify the influence of other risks on the investigated one.

Bibliography

1. Federal Law of July 21, 1997 N 116-FZ "On Industrial Safety of Hazardous Production Facilities"
2. Website "Hazard Analysis and Technological Risk Assessment" (riskprom.ru)
3. GOST R 51898-2002 Safety aspects. Rules for inclusion in standards
4. GOST R ISO/IEC 31010-2011. Risk management. Risk assessment techniques
5. Simplified Risk Analysis – Layer of Protection Analysis (LOPA). Prepared for Presentation at the American Institute of Chemical Engineers 2002 National Meeting Indianapolis, in November 3-8, 2002. Paper 281a
6. GOST R IEC 61508 series Functional safety of electrical/electronic/programmable electronic safety-related systems
7. GOST R IEC 61511 series Functional safety. Safety instrumented systems for the process industry sector
8. Rostekhnadzor Order of April 11, 2016 N 144 "Safety Guide "Methodological foundations for conducting hazard analysis and accident risk assessment at hazardous production facilities
9. Standard Rule Set for Layers of Protection Analysis Studies. ESC Co. 2013
